Factory Customized Truck Bed Liner Dump Truck Bed Sheet for Sale

📋 Overview & Basic Info

Water Absorption＜0.01%

Contraction Percentage＜0.4%

Tensile Strength81~130MPa

StandardASTM

TypeWear Resistant Plate

Thickness6-200mm

Density0.94-0.97g/Cm³

HardnessShore D 62-68

Coefficient of Friction0.1-0.15

Production Capacity3000 Pcs/Month

🛠️ Product Description

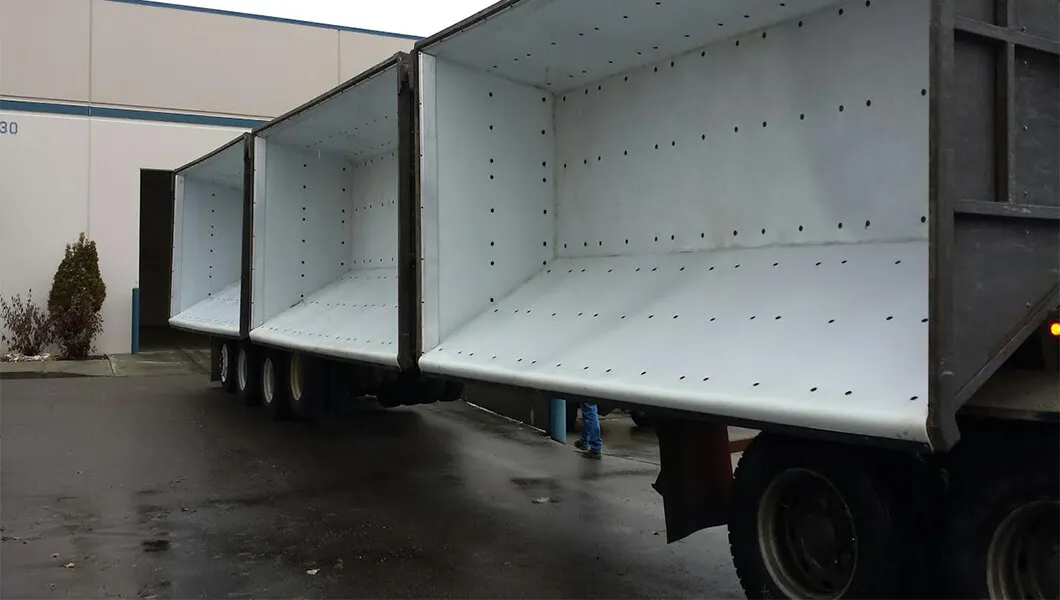

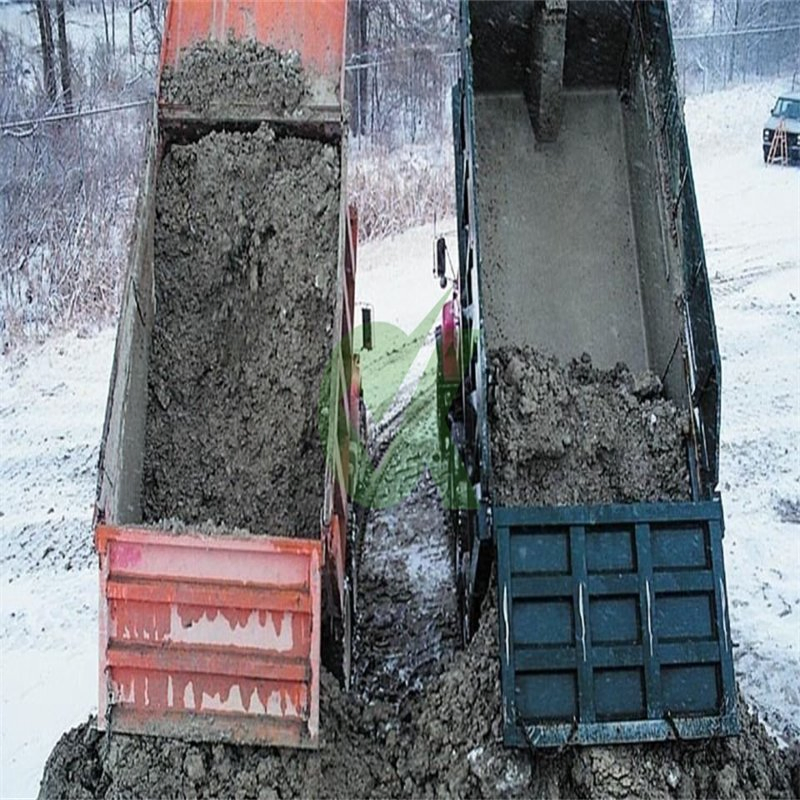

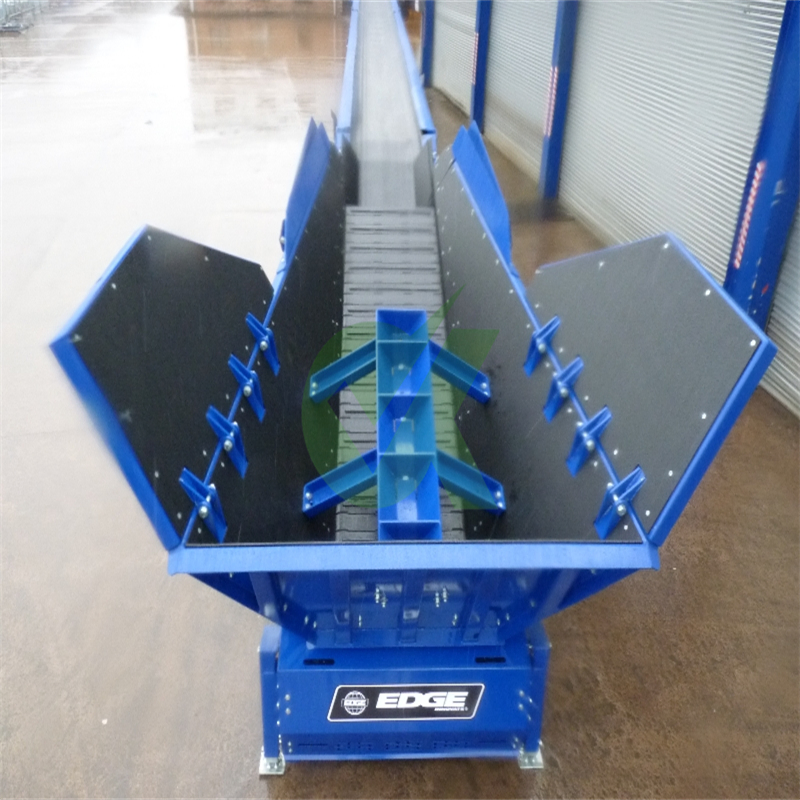

UHMWPE dump truck bed liners solve the problem of arching blockage and bridge blockage caused by material agglomeration, bridging, or freezing during storage and transportation. These are essential for hoppers, conveying chutes, and silos in power plants, coal mines, and vehicle transportation industries.

Test Item	Test Method	Result
Static Coefficient of Friction	ASTM D1894-14	0.148
Kinetic Coefficient of Friction	ASTM D1894-14	0.105
Flexural Modulus	ASTM D790-17	747MPa
Izod Notched Impact Strength	ASTM D256-10	840J/m
Shore Hardness	ASTM D2240	D/64/1
Tensile Modulus	ASTM D638-14	551 MPa

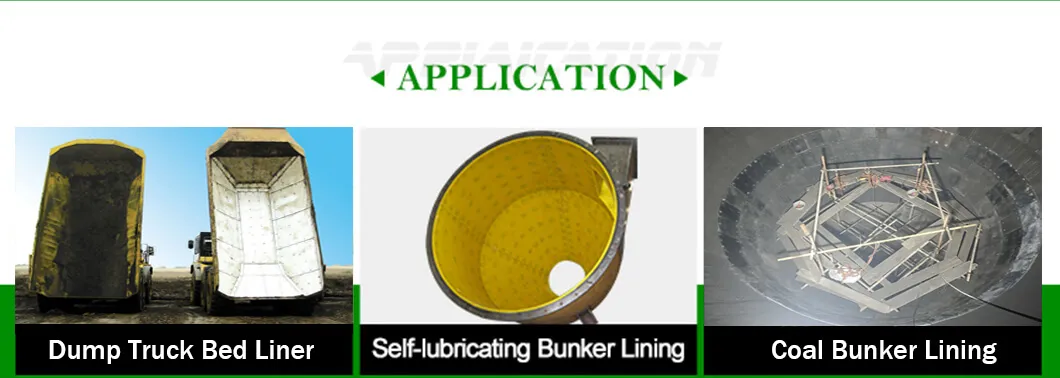

🏗️ Application Areas

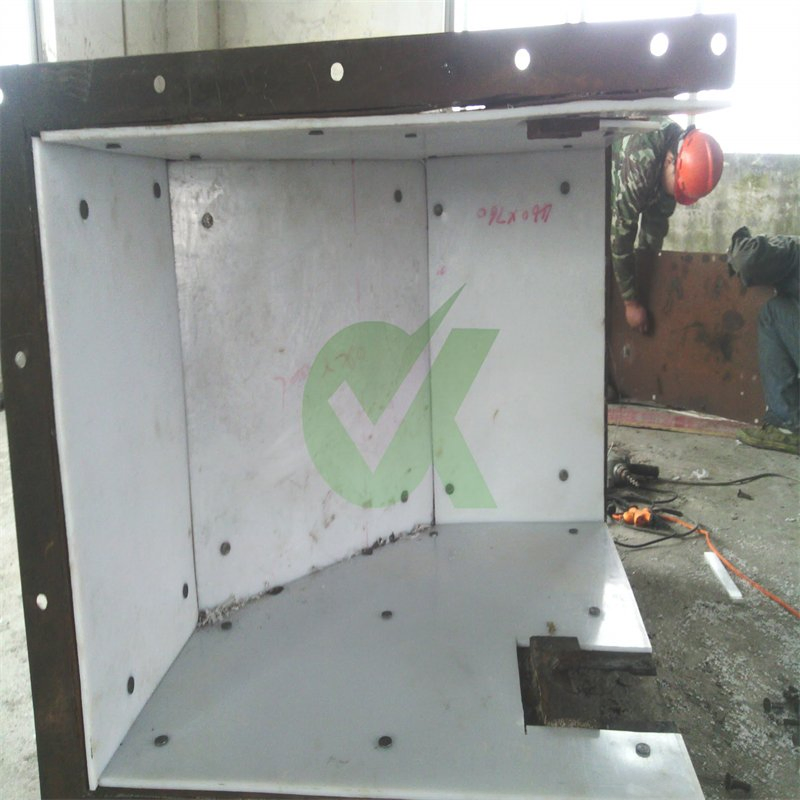

UHMWPE plastic liners are widely used in coal silos, gypsum silos, lime silos, cement silos, and dump trucks within the steel, electric power, coal, and mining industries. They provide an excellent solution for adhesion, congestion, and fast wear, significantly improving production efficiency.

🏭 Professional Manufacturing

With 20 years of exporting experience and an outstanding R&D team, we provide high-performance UHMWPE sheets. Standard sizes include 1250*3100mm, 1220*2440mm, and 2100*3100mm, with thickness ranging from 6mm to 200mm. Products undergo 48-hour cooling to ensure minimal deformation.

🛡️ Certifications & Logistics

All raw materials and finished products are tested in our internal laboratory to prohibit unqualified products. Our bed liners are sold globally to the US, CA, AU, and Europe, typically packaged on wooden pallets for secure transport.

❓ Frequently Asked Questions

Q1: What colors of UHMWPE dump bed liners are available? A1: We produce regular colors like green, blue, black, yellow, and grey. Custom Pantone colors can also be manufactured upon request.

Q2: What is the typical delivery time? A2: Delivery time depends on the order volume, but it is usually around 7 days for standard orders.

Q3: How can I obtain a product sample? A3: Small size samples are free; you only need to cover the shipping cost or provide a courier account (UPS, DHL, FedEx, TNT).

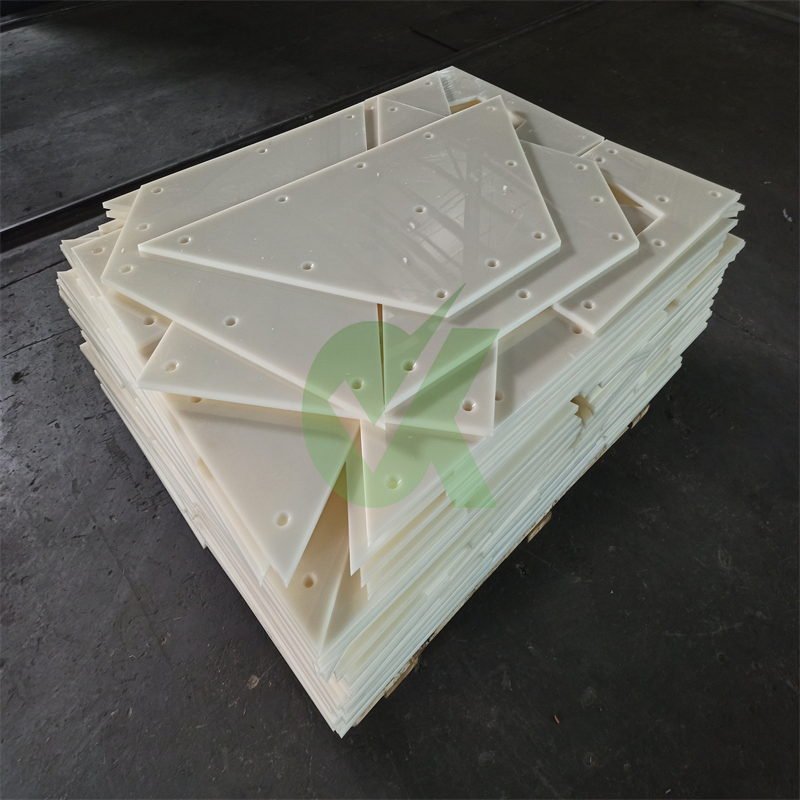

Q4: What are the standard sizes for these liners? A4: Our main mold sizes are 1250*3100mm, 1220*2440mm, and 2100*3100mm. We can also customize the size based on your specific demand.

Q5: Is there an inspection before shipment? A5: Yes, every step before loading is carefully checked to ensure that the products arrive in good condition.
