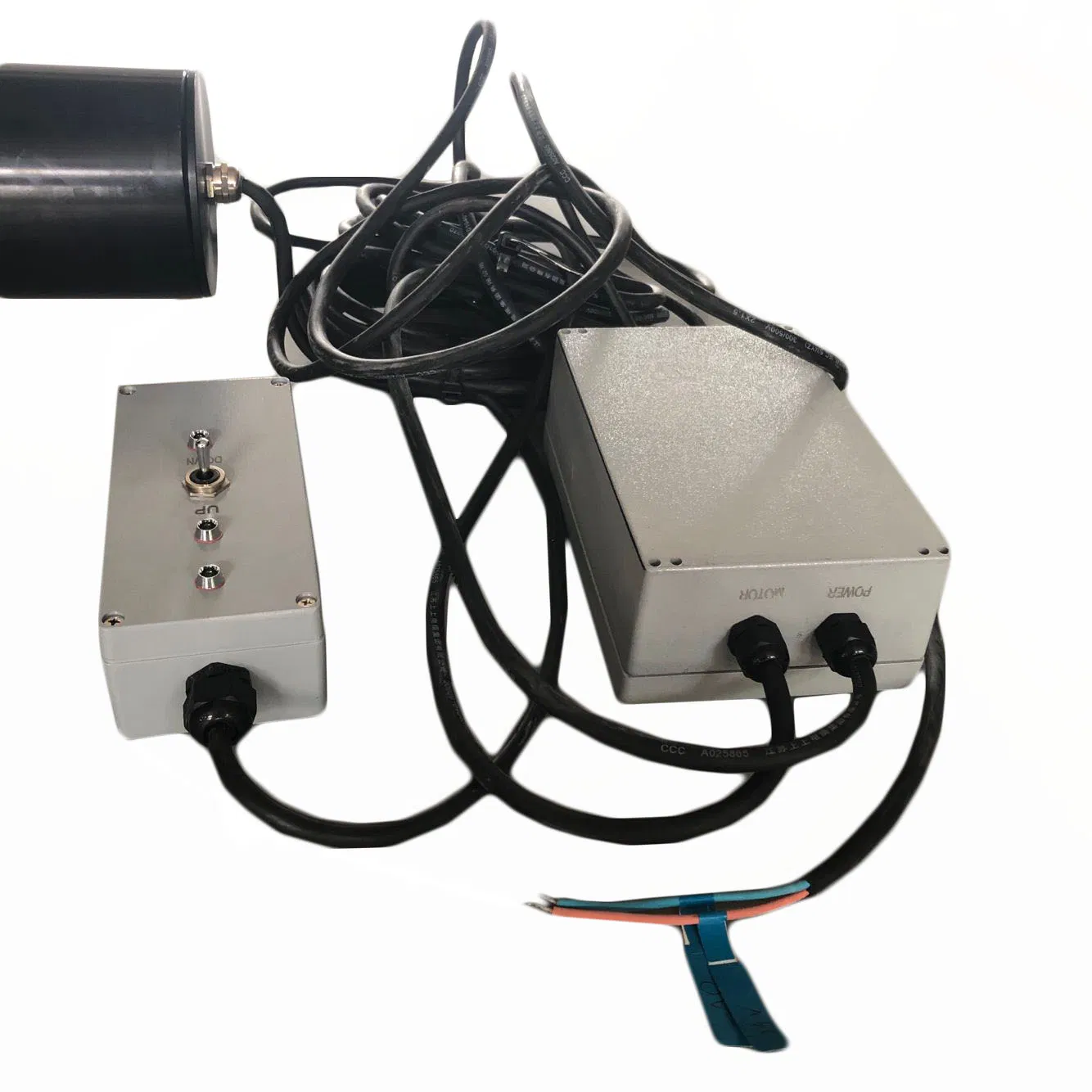

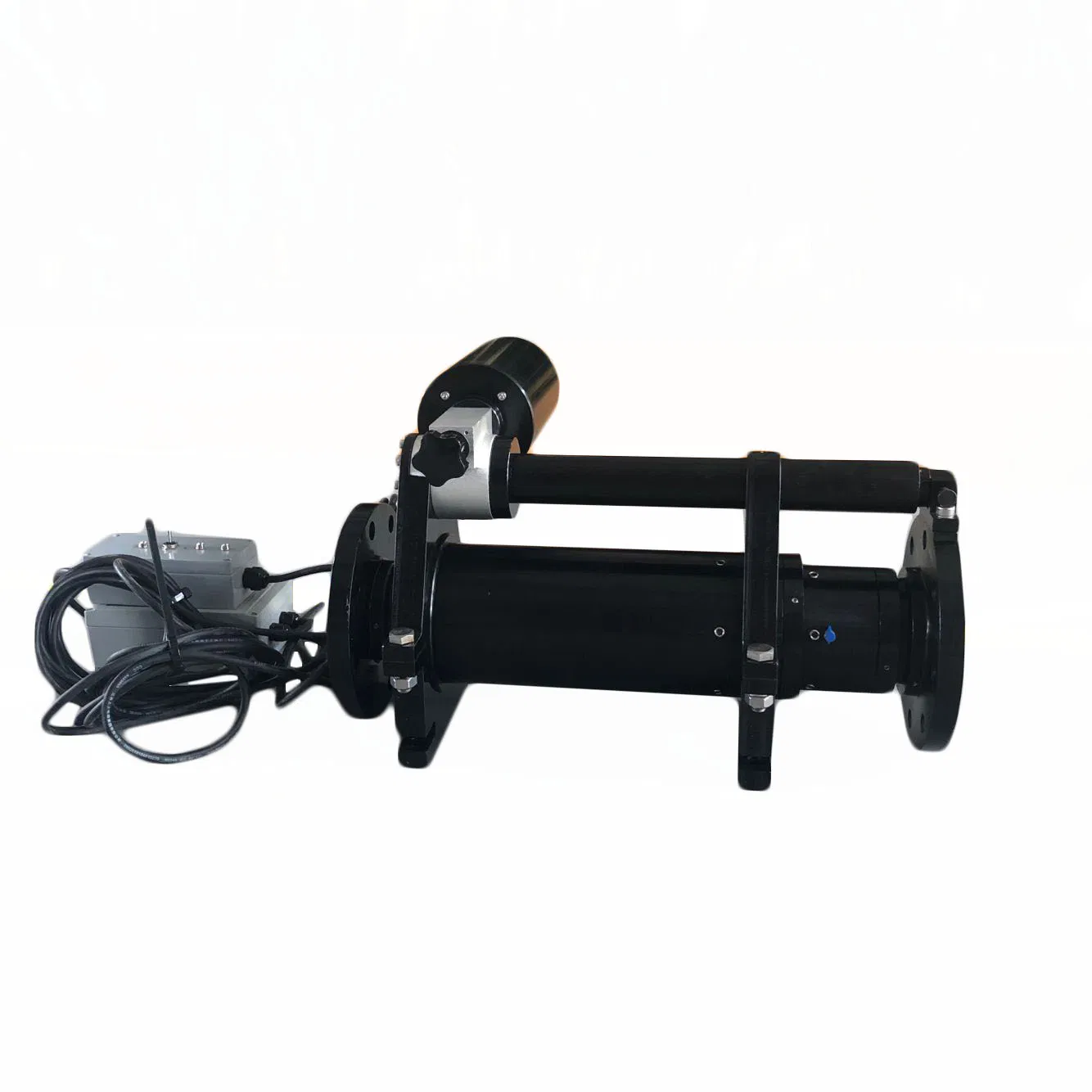

Electric Controlled Fire Truck Fire Fighting Extender Equipment for Fire Protection

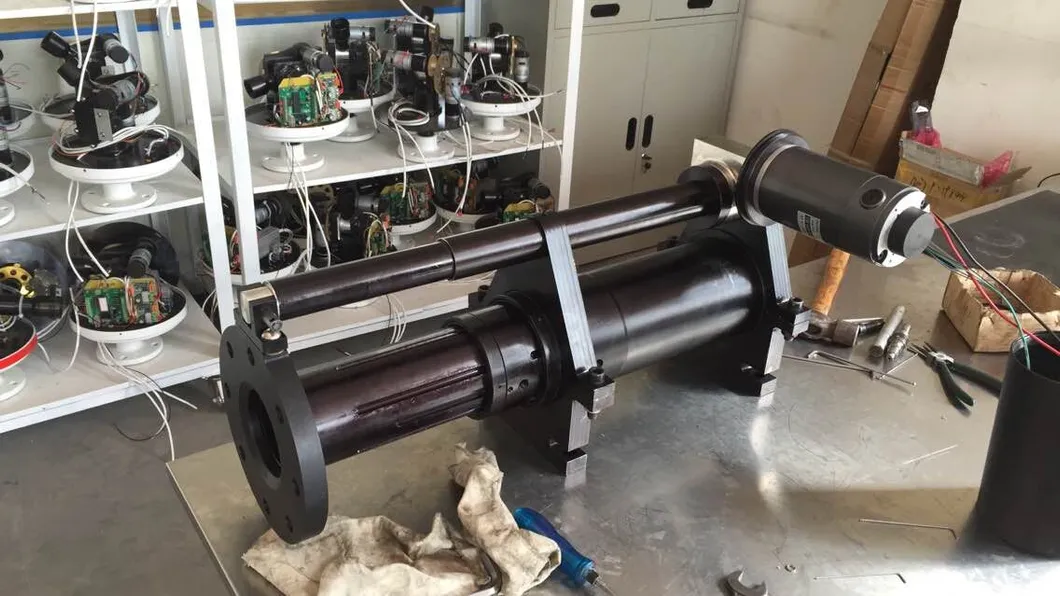

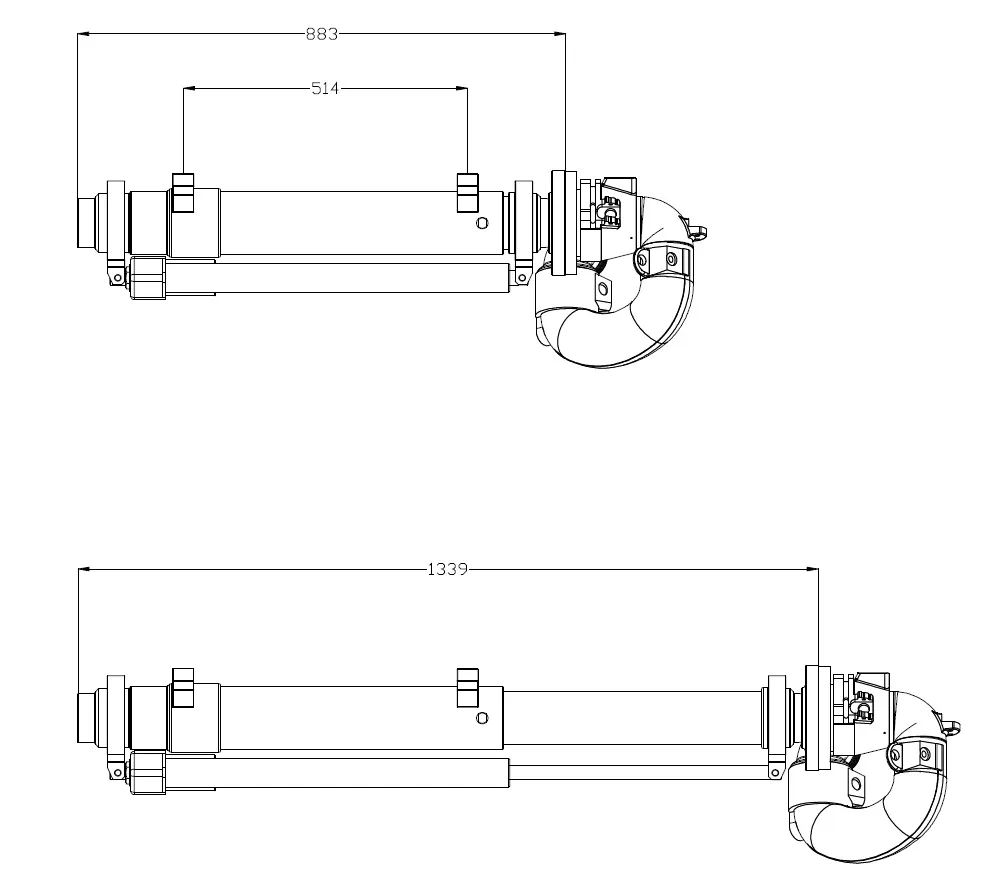

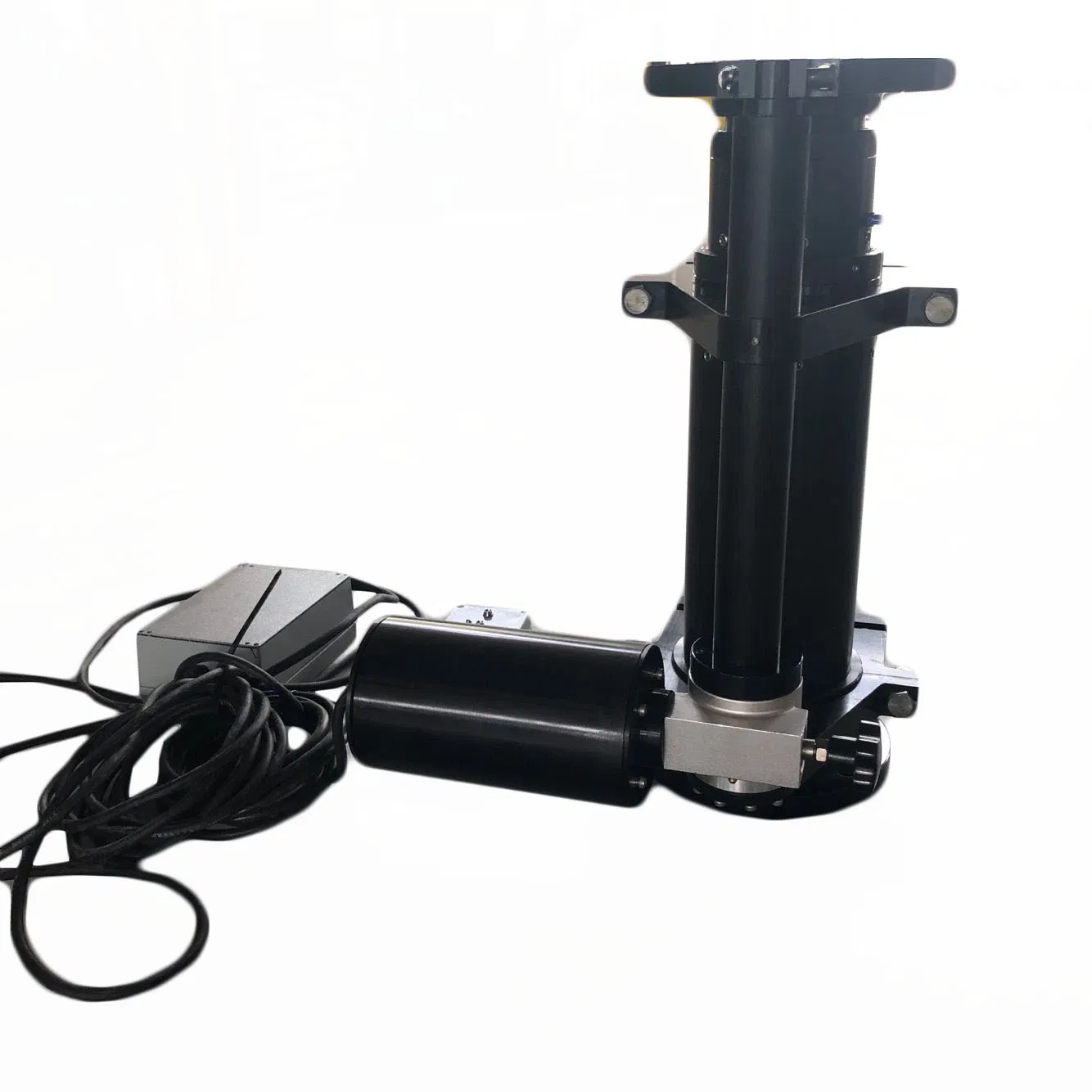

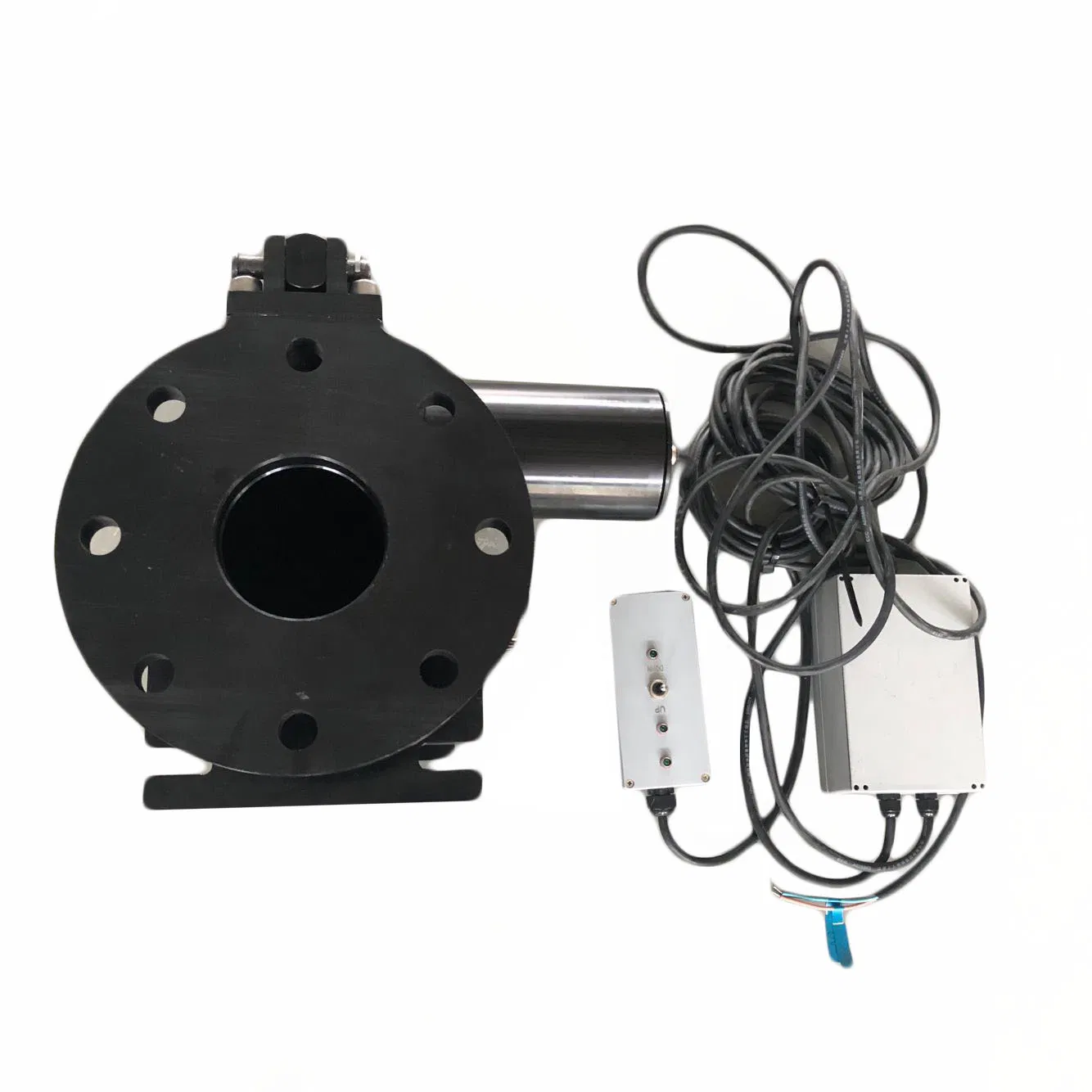

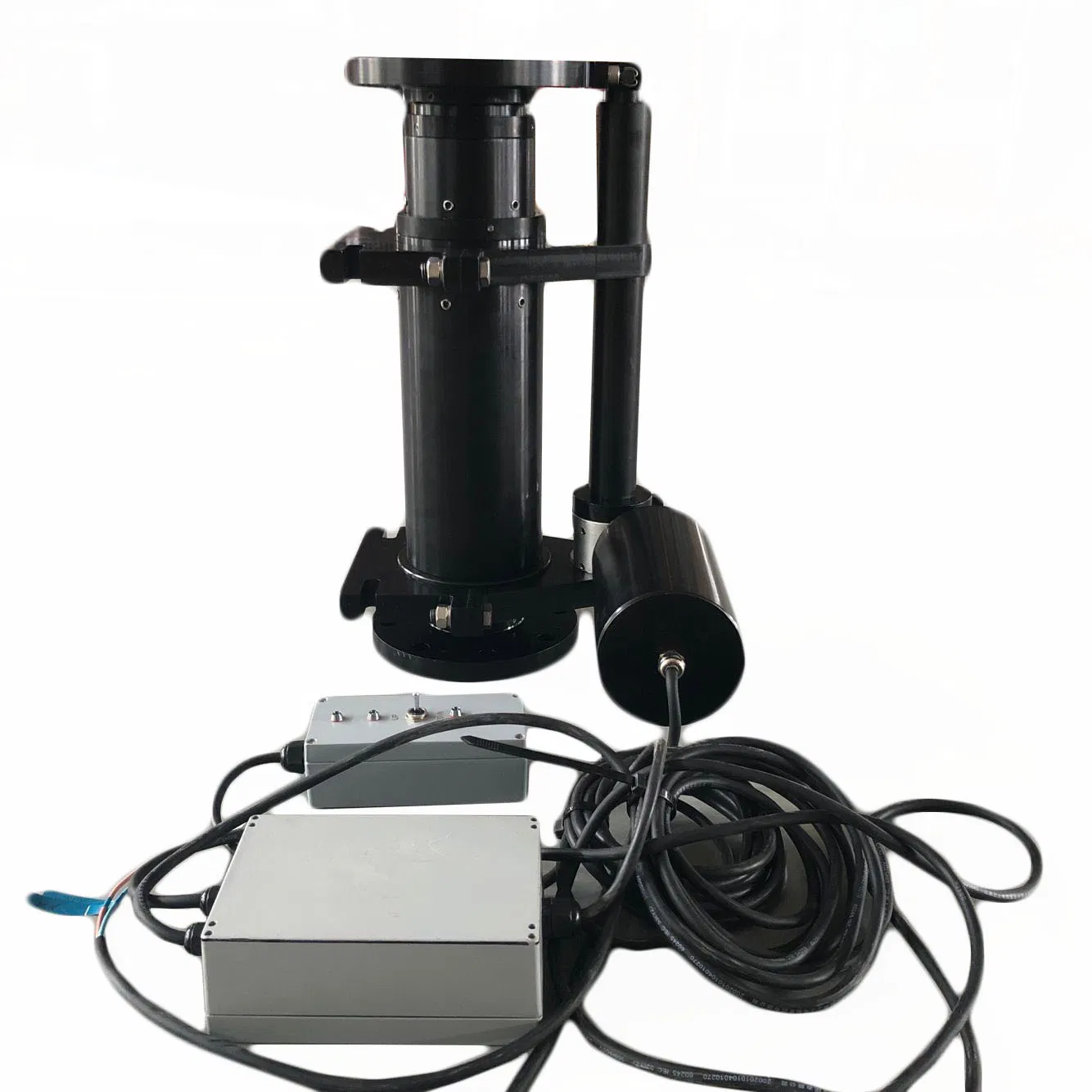

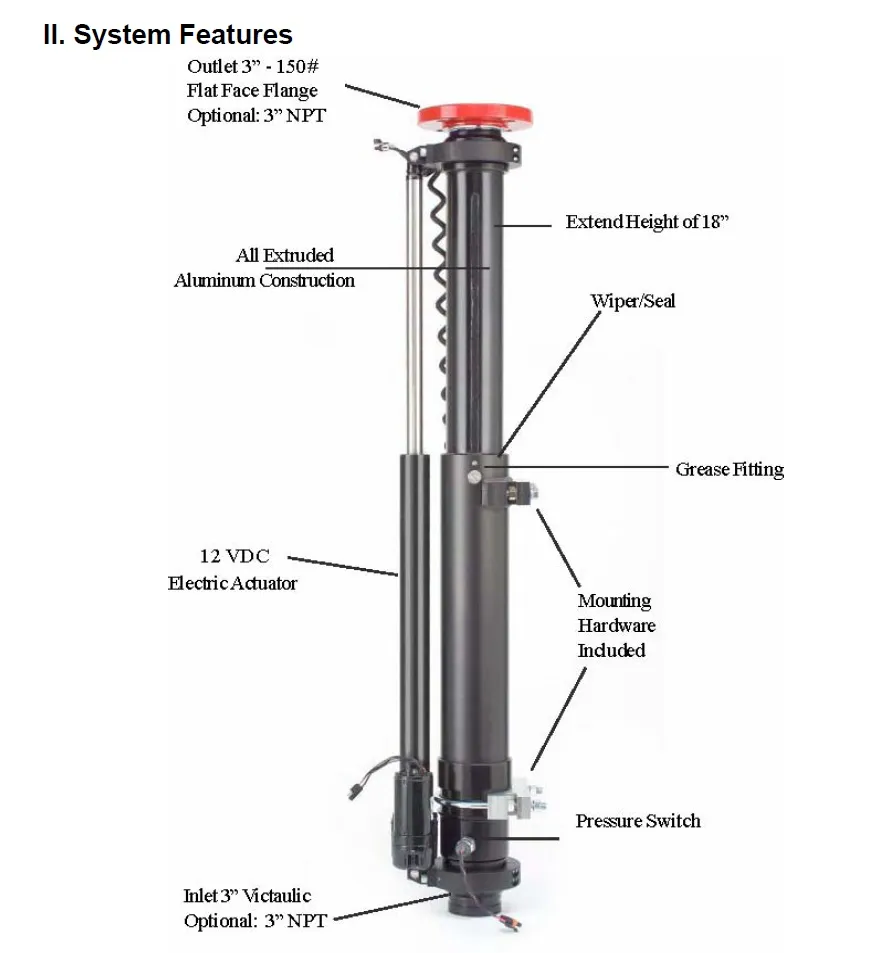

The Extender is an electric operated telescoping waterway. It is designed to elevate a deck monitor 18 inches so the stream path can clear obstructions like truck cab, lights, hose bed, etc. It is designed to be used in full up position, but can be used in the full down position.

The maximum flow capacity is 1250 gallons per minute. The maximum inlet pressure is 200 psi. A pressure switch prevents the Extender from moving when internal pressure exceeds 10 psi to prevent damage to equipment or injury to personnel caused by unexpected changes in stream elevation.

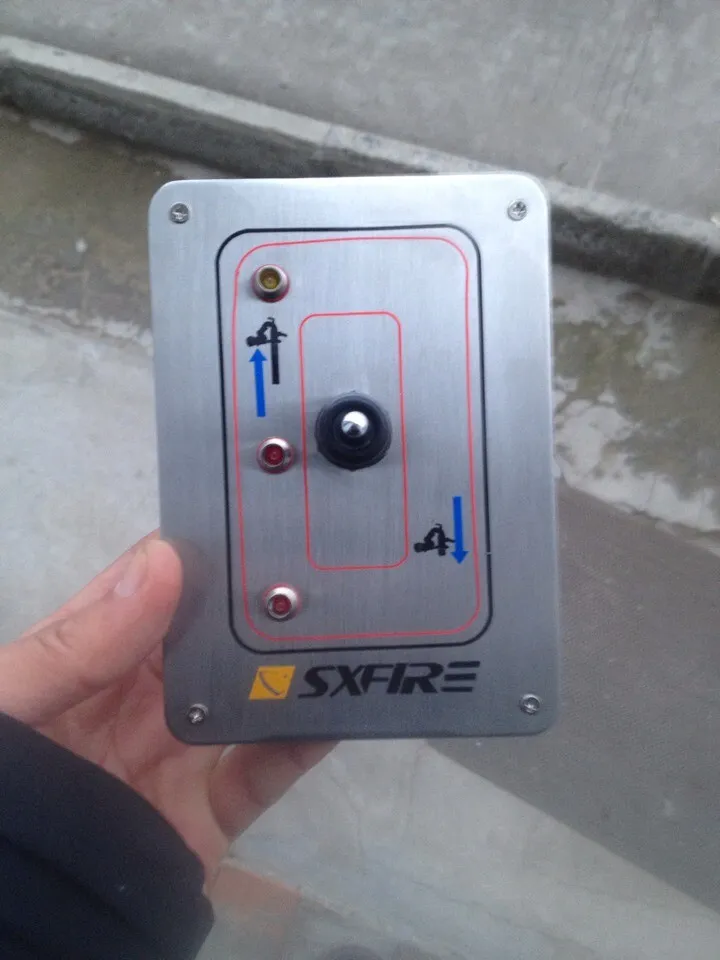

• Good Control system with monitoring screen in the control room.
• Parking function: monitor nozzle and extender park simultaneously.
• Professional and presentable surface finish.
• Three-section design for more accurate height and distance.
