UHMWPE Dump Truck Bed Liner/Trailer Bed Non-Stick UHMWPE Liner Sheet

Basic Information

Model NO.LIN-2

MaterialPE

Water Absorption＜0.01%

Tensile Strength41~50MPa

Life SpanMore Than 10 Years

Production ModeMolding

Thickness3-300mm

Molecular Weight3-9 Million

UV StableYes

HS Code3920109090

Product Description

The Ultimate Solution for Your Next Project

UHMWPE Lining is a high-performance, wear-resistant material made from ultra-high molecular weight polyethylene. It provides exceptional resistance to abrasion, chemicals, and heat. Perfect for protecting and enhancing the performance of various industrial surfaces.

Key Benefits

High Durability: Long-lasting protection against wear and tear for heavy-duty equipment.
Chemical Resistance: Highly resistant to acids, bases, and solvents.
Thermal Resistance: Excellent performance in high-temperature environments.
Easy Application: Can be installed on metal, concrete, and other surfaces.
Environmental Friendly: Non-toxic and recyclable material.
Versatility: Suitable for flooring, conveyor systems, and wall protection.

Specifications

Size (mm)	Thickness (mm)	Density
300X300	3-300	0.93-0.95g/cm³
450X450
1550X4300
2150X5370
1560X6280
Note: Size and color can be fully customized

Manufacturing Excellence

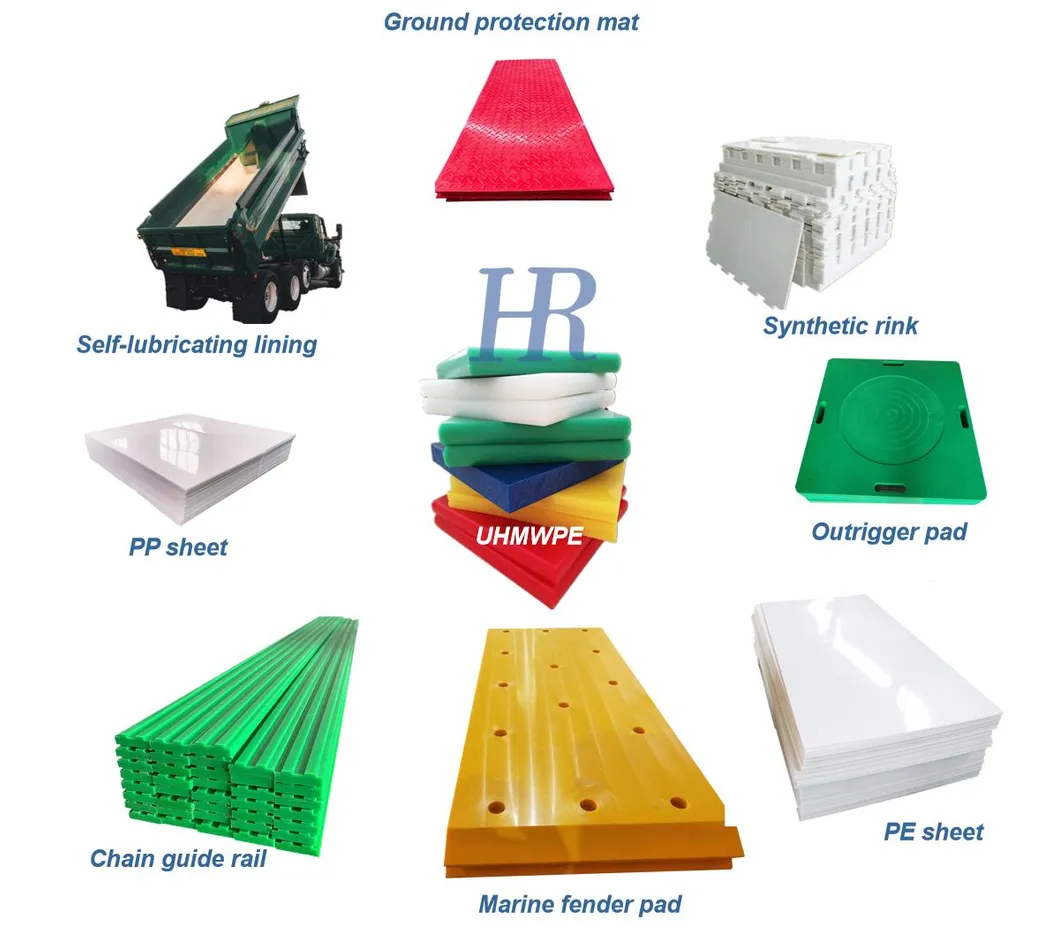

With more than 20 years of experience, our facility is dedicated to producing high-quality engineering plastics. Our product range includes UHMWPE Sheets, HDPE Sheets, PP Sheets, and various machined components widely used in mining, chemical plants, and ports worldwide.

Packaging & Shipping

Standard international logistics packaging is provided to ensure the safety and integrity of goods during transportation. Custom adjustments can be made based on specific client requirements.

Frequently Asked Questions

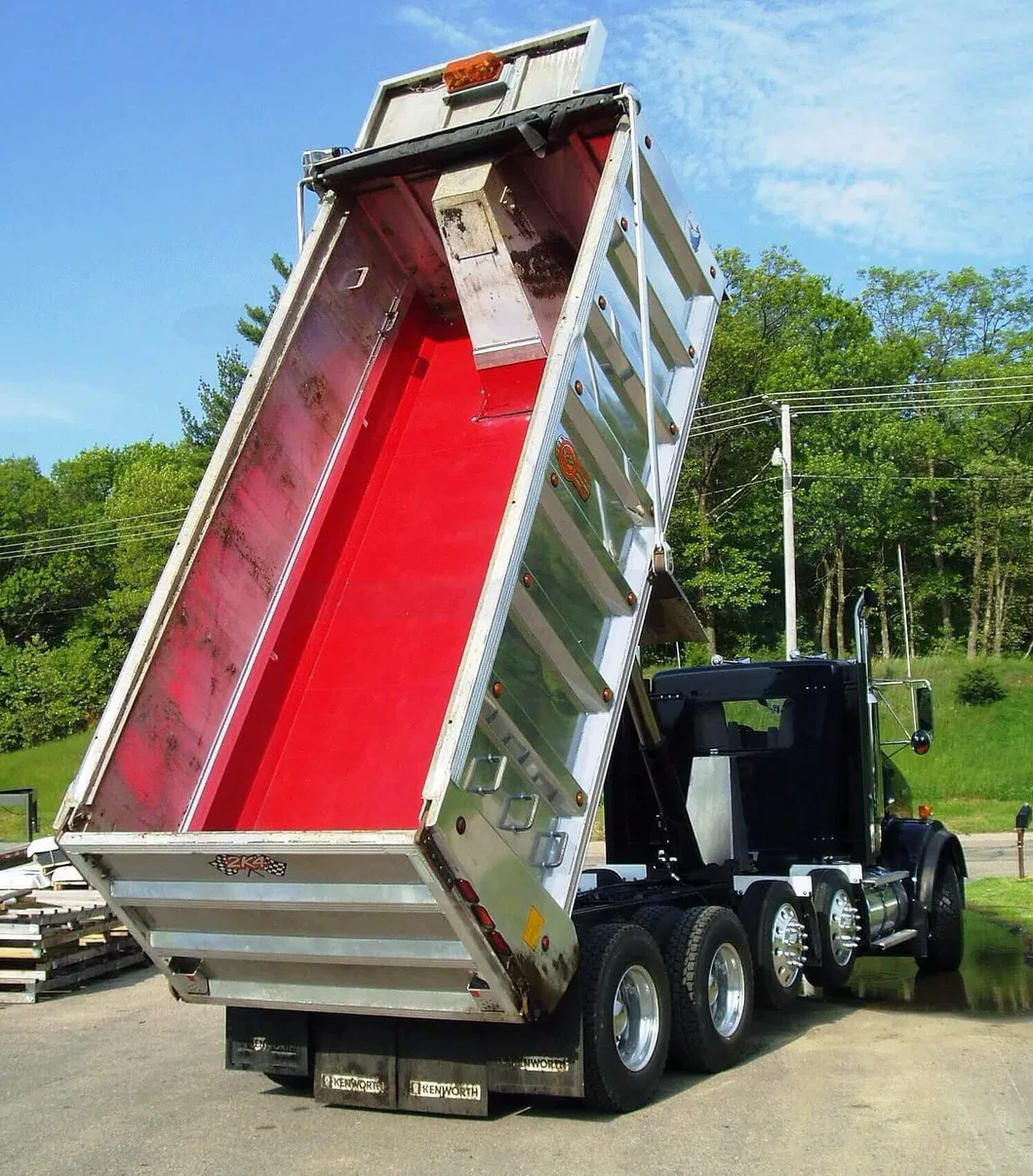

What makes UHMWPE suitable for truck bed liners?

UHMWPE has a very low coefficient of friction and excellent abrasion resistance, which prevents materials from sticking to the bed and protects the vehicle from wear.

Can the liners be customized to specific dimensions?

Yes, we provide customization for both size and thickness to fit various truck models and industrial applications perfectly.

What is the temperature range for these lining sheets?

UHMWPE lining offers excellent thermal resistance, maintaining its properties in a wide range of industrial temperature environments.

Are the liners resistant to chemicals?

Absolutely. The material is highly resistant to corrosive chemicals, including most acids, bases, and organic solvents.

How long does the installation usually take?

The lining is designed for easy application. While time varies by surface area, its flexibility allows for efficient installation on metal or concrete.

What is the typical lifespan of the liner?

With proper installation, our UHMWPE liners typically have a life span of more than 10 years even in heavy-duty use.
