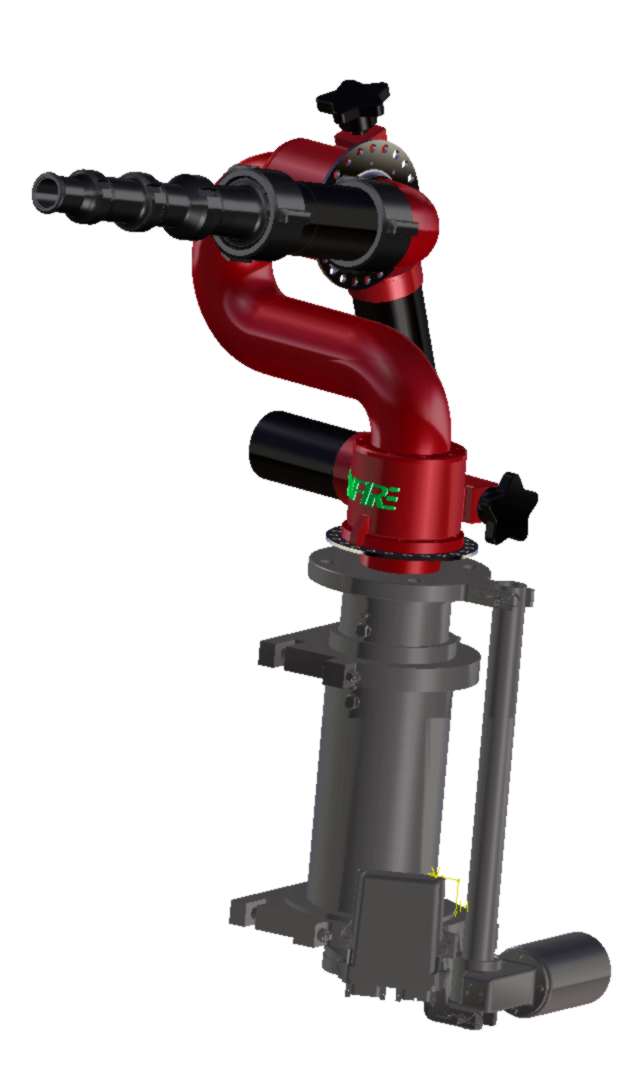

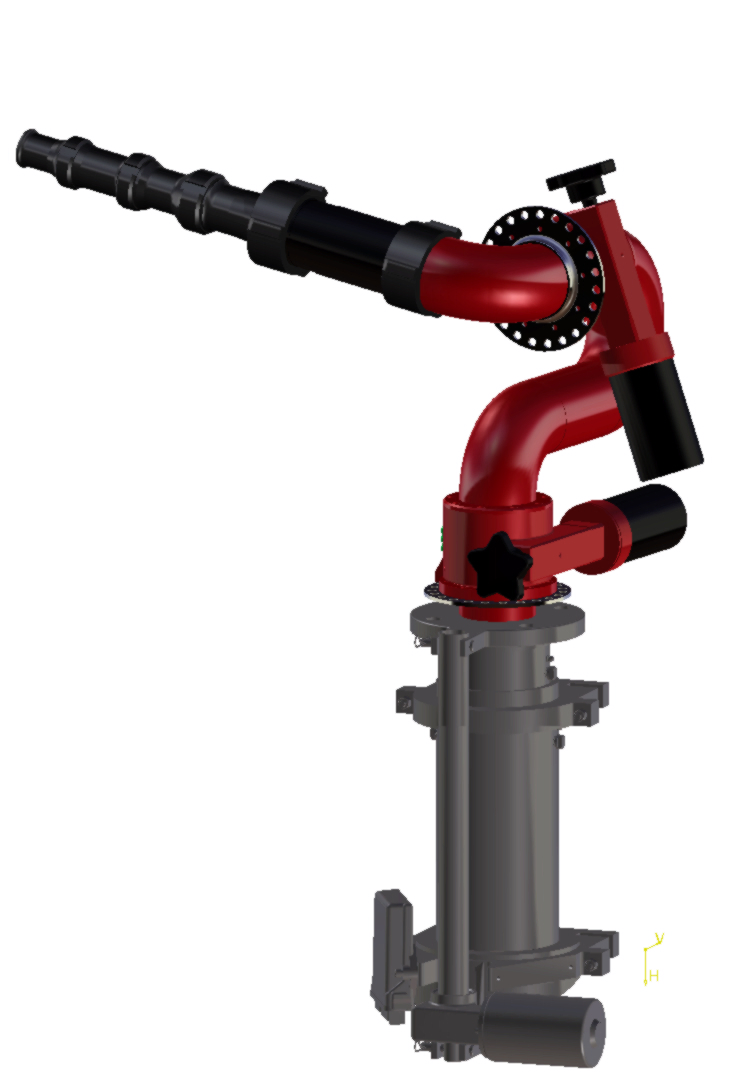

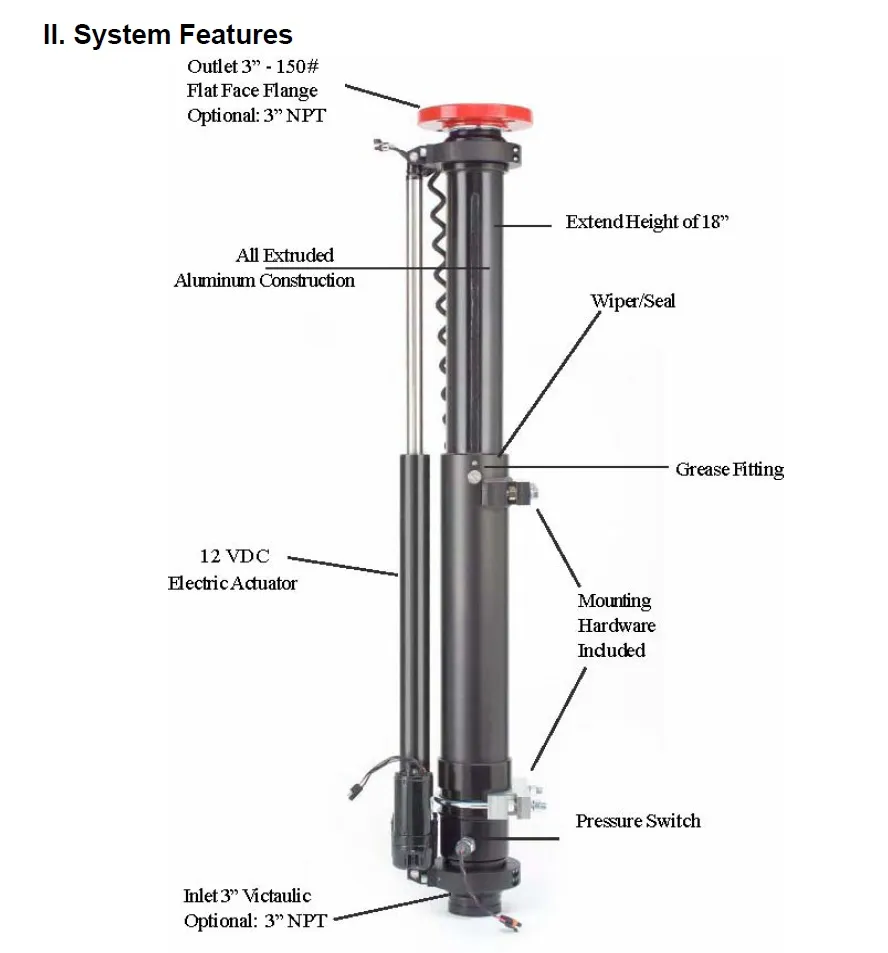

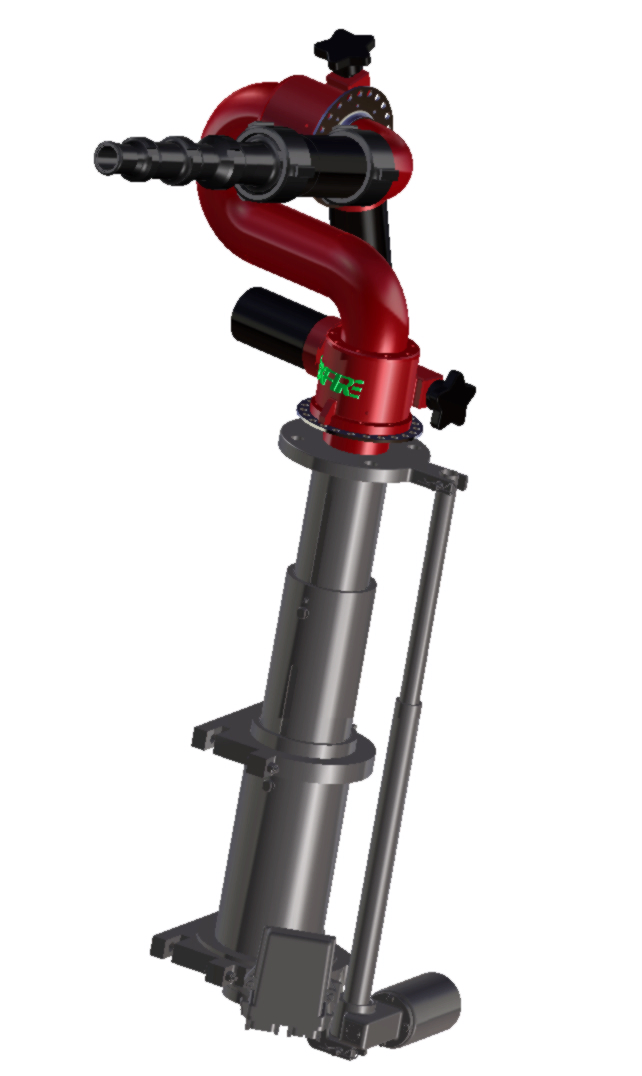

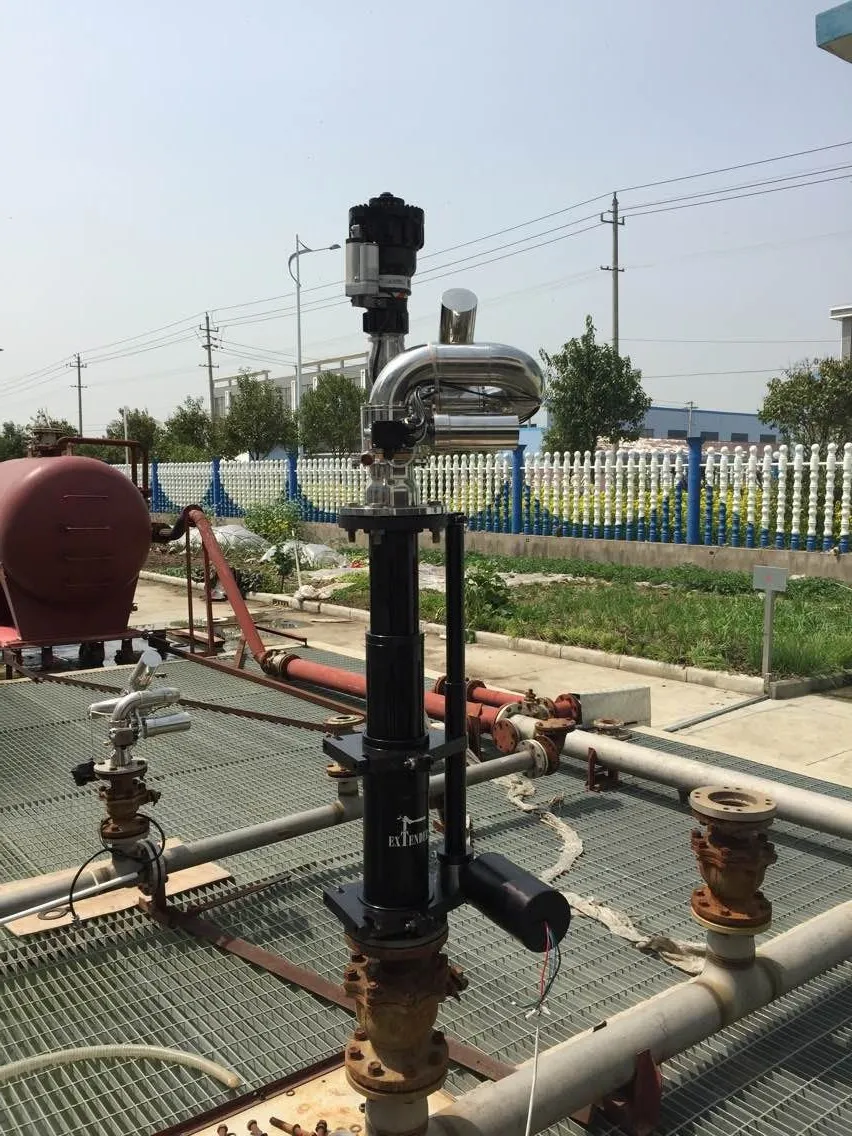

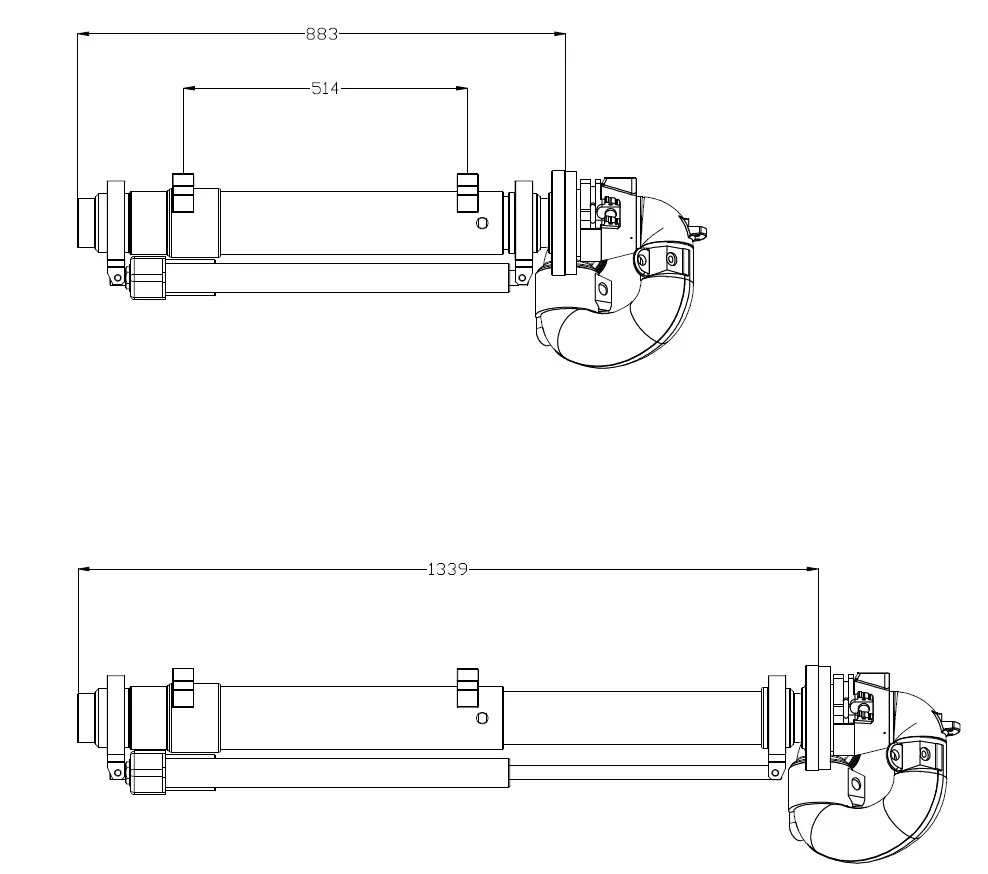

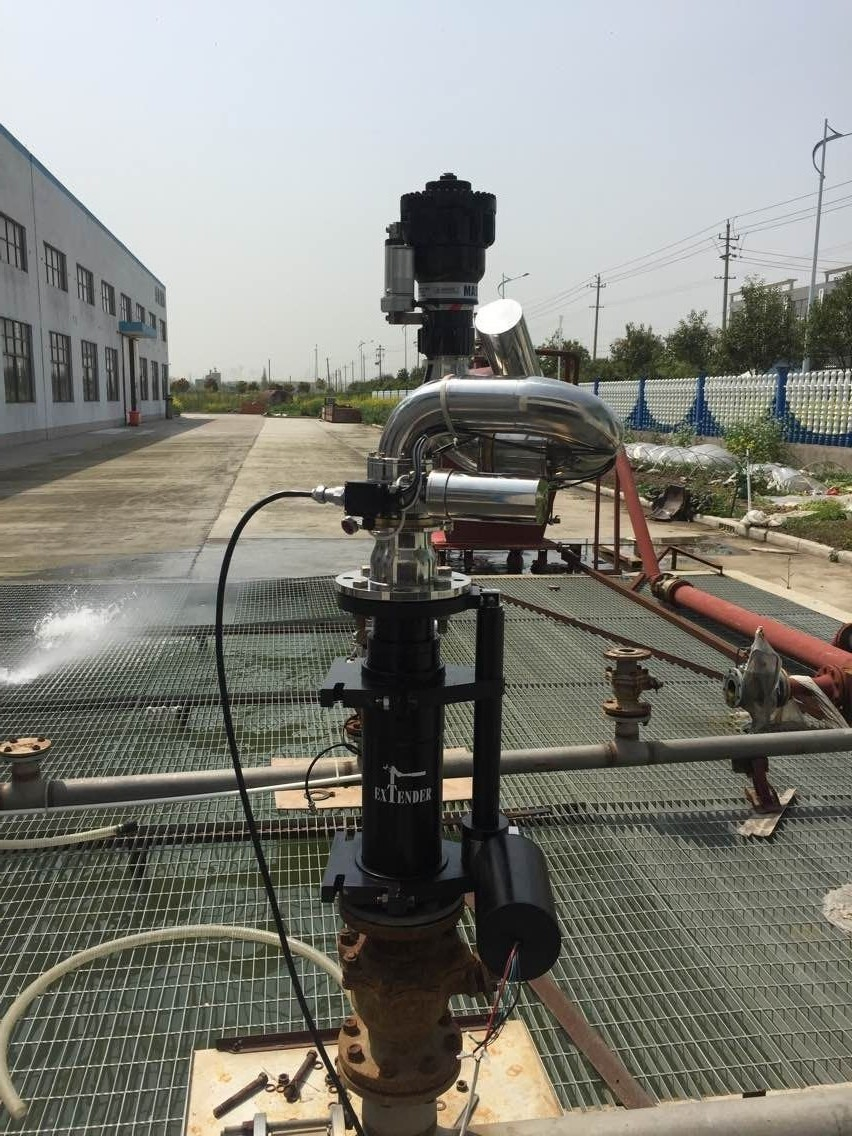

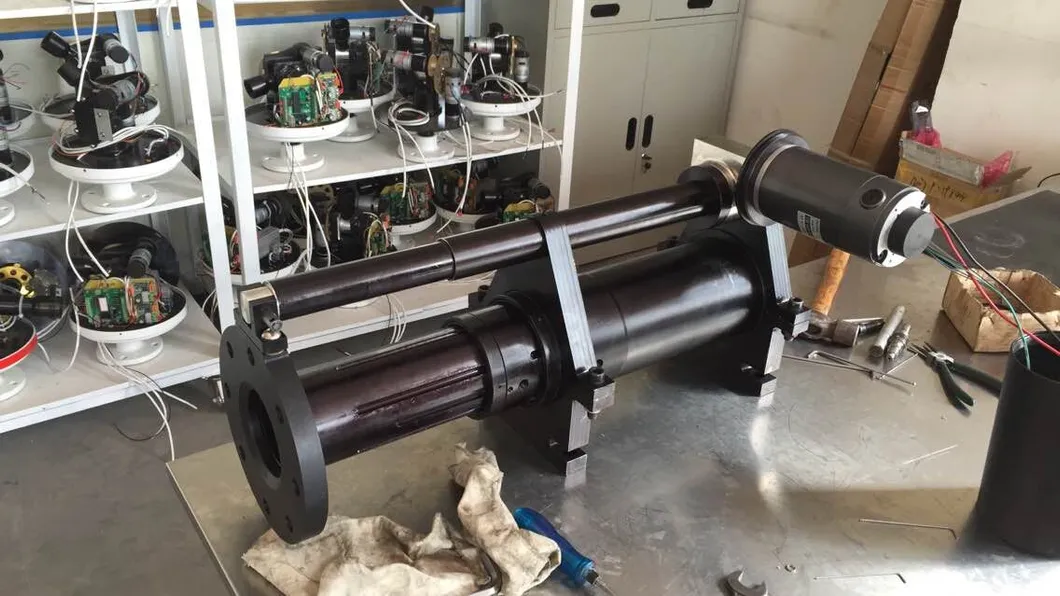

The Extender is an electric operated telescoping waterway. It is designed to elevate a deck monitor 18 inches so the stream path can clear obstructions like truck cab, lights, hose bed, etc. It is designed to be used in full up position, but can be used in the full down position. The water supply connection is 3 inch Victaulic (optional 3 inch NPT male thread). The discharge connection is 3 inch 150 lb. ANSI pattern flange (optional 3 inch NPT male threads).
The maximum flow capacity is 1250 gallons per minute. The maximum inlet pressure is 200 psi. A pressure switch prevents the Extender from moving when internal pressure exceeds 10 psi to prevent damage to equipment or injury to personnel caused by unexpected changes in stream elevation.
Truck Voltage: Minimum 11 VDC to Maximum 15 VDC
Recommended Ratings:
Operating voltage: 13.8 VDC | Primary fuse rating: 10A | Position warning output fuse: 125mA
Performance:
Max flow: 1250 gpm | Max inlet pressure: 200 psi | Extension: 12 inch | Inlet: 3'' BSP Male
